EPC
MANCOOLER
Workers tend to lose energy and get
exhausted while working in the intense heat on the shopfloors. This results in loss of
productive capacity, decrease in output and strain in human relations. So a cooling appliance
becomes essential
. This is where E.P.C. Mancooler steps in.
The E.P.C. Mancooler is superbly designed and manufactured to provide the best cooling comfort
and is useful even in areas of high temperature such as steel plants and foundries.
It cools the body by producing a high velocity air stream with maximum reach. The blast of air
provided by it sets in motion the surrounding air, which increases as it covers distance.
- All shop floors, specially those with furnaces,
foundries and heat - producing apparatus.
- Factories with large number of workers and machines.
|
- Cooling of brick kilns, cooling bottles in
glass works, tempering furnaces and electrical equipment.
- Industrial cooling of castings, generators and other machines.
- Dehydration in cold storage of perishable and edible products.
It increases productive productive capacity and at the same time, improves industrial
relations. It acts as the substitute for several fans of other types.

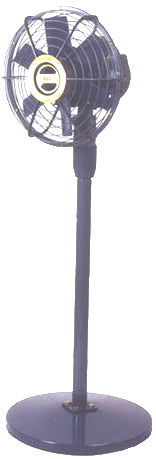

- PEDESTAL TYPE: It is designed to be placed on the floor. The Impeller and Motor are
mounted on a heavy base and a robust supporting column.
- BRACKET TYPE: It is useful where adequate floorspace is not available and it is fixed
to the wall or column
-
TUBULAR TYPE: In this type the Impeller and Motor Assembly is placed
in a Tubular Casing having a provision for angular adjustment so as to channelise the
air stream in the required direction. It is portable and stands steadily even on rough
surface.
BOTH THE TYPES ARE CAPABLE OF
BEING SWIVELEDBOTH IN HORIZONTAL
AND VERTICAL PLANES THUS COVERING WIDER AREA OF AIR CIRCULATION.
|
|
Motors are generally available for 400 / 440 Volts 3 phase
50C/S A.C. Supply.
Performance figures of the fans will be tested as per ISS 6272 with tolerances mentioned
therein.
Performance Table
Technical Specifications of
Industrial Type Heavy Duty Man Cooler
Performance figures of fans tested as per ISS 6272
with tolerances mentioned therein
Sweep
MM/(Inch) |
Speed
(R.P.M.) |
Motor
(H.P.) |
Total air delivery
at 10 times blade
sweep |
Minimum peak
air velocity at a
distance of |
| CFM |
M3/hr |
10 times
blade
sweep
m/min. |
15 times
blade
sweep
m/min. |
*300 (12")
*480 (19")
480 (19")
*600 (24")
750 (30")
900 (36")
900 (36")
1000 (40")
|
2850
1440
2900
1440
1440
960
1440
1440
|
0.5
0.5
3
1
2
2
3
4
|
5,250
7,000
12,000
16,500
22,000
33,000
38,000
42,000
|
9,000
12,000
22,000
28,000
37,500
56,000
65,000
72,000
|
250
200
250
250
250
250
275
250
|
200
120
200
150
150
150
175
150
|
Due to continuous development and innovation, the above specifications are subject to change.
Motors are generally made for 400/440 volts, 3 phase 50 C/S AC supply.
*
Both 1 phase 200/220 volts and 3 phase 400/440 volts.
|
